H · 2021 · 005

Urban furniture for Huet Square

Urban furniture for Huet Square in Sibiu: zigzag steel benches and concrete modules, delivered and installed for the Municipality of Sibiu in 2021.

Project notes

Huet Square, in Sibiu's historic centre, remained closed to traffic and became a place to stroll and rest. The City Hall furnished it with urban furniture to an architect's design; we handled fabrication, delivery and installation.

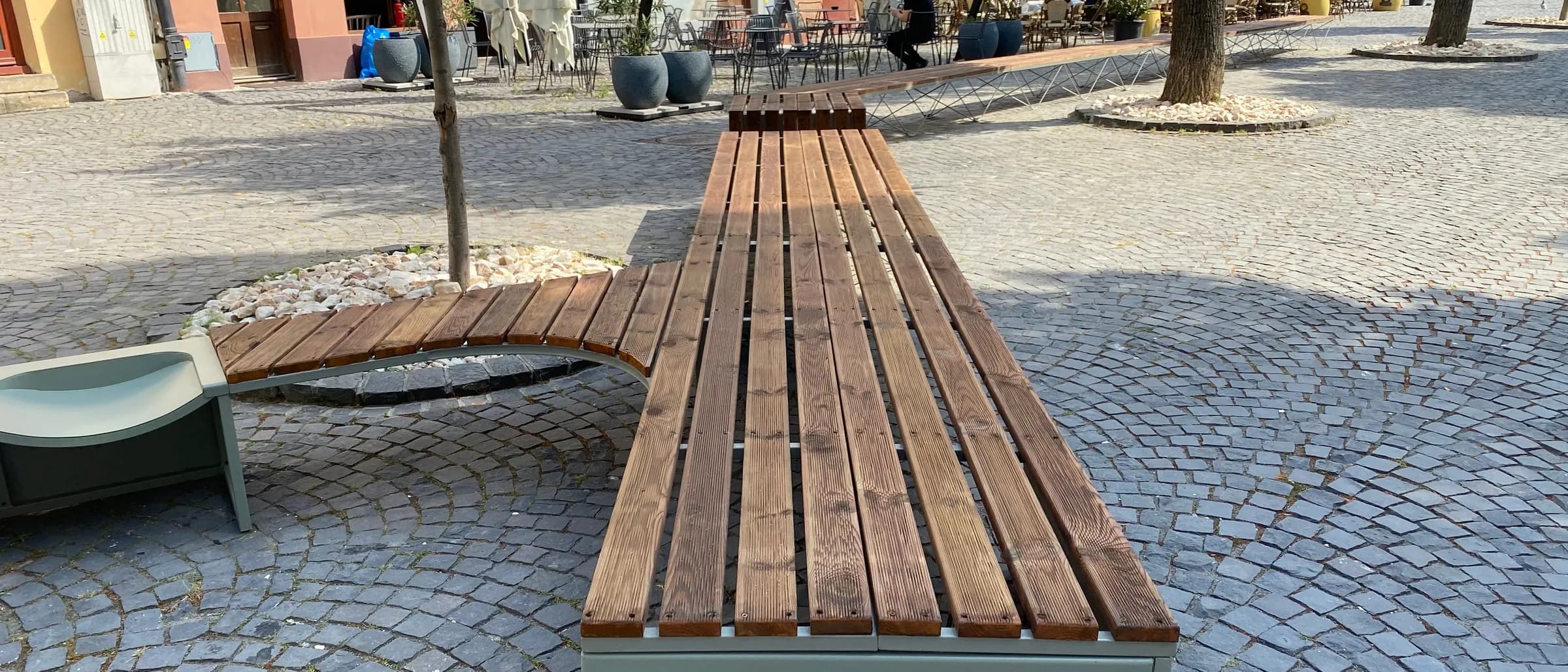

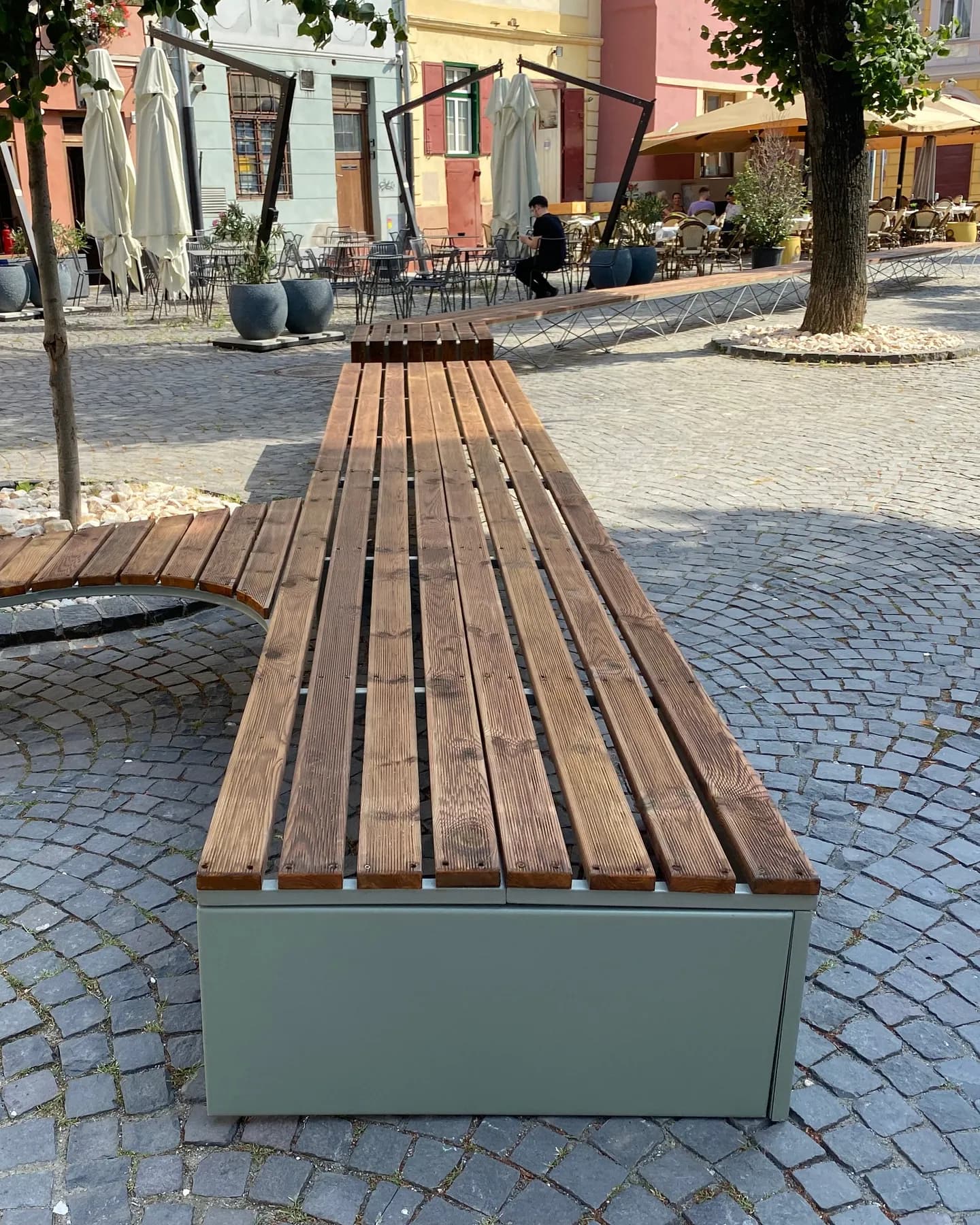

We supplied the furniture for five areas: three zigzag steel benches that follow the line of the trees, ten concrete modules and five cylindrical concrete benches, 60, 100 and 140 cm in diameter. The zigzag benches are made of laser-cut steel plate, galvanised and painted greenish grey (RAL 7033), with parts of the seating clad in timber; one of them also has two aluminium information cases with glass display windows. The modules and the cylindrical benches are made of reinforced concrete with stone aggregate, cast in glass-fibre moulds.

In April 2021 we raised the question of the load-bearing capacity of the steel pieces and proposed new elements to reinforce them. On 26 May 2021, at the production site in Bucharest, we tested full-scale segments of the furniture with the architects, for strength and use. Changes to shape and structure and new structural elements were requested, and the technical design and the workshop drawings had to be modified.

The furniture was accepted on 15 July 2021, with a 36-month warranty.

Project sheet

Client
Municipality of Sibiu
Year
2021
Sector
Public sector
What we did
Custom furniture
Location
Sibiu
Materials
laser-cut steel, galvanised and powder-coated · exterior timber with an oil finish · reinforced concrete with stone aggregate · aluminium and glass
Status
Delivered
Updated

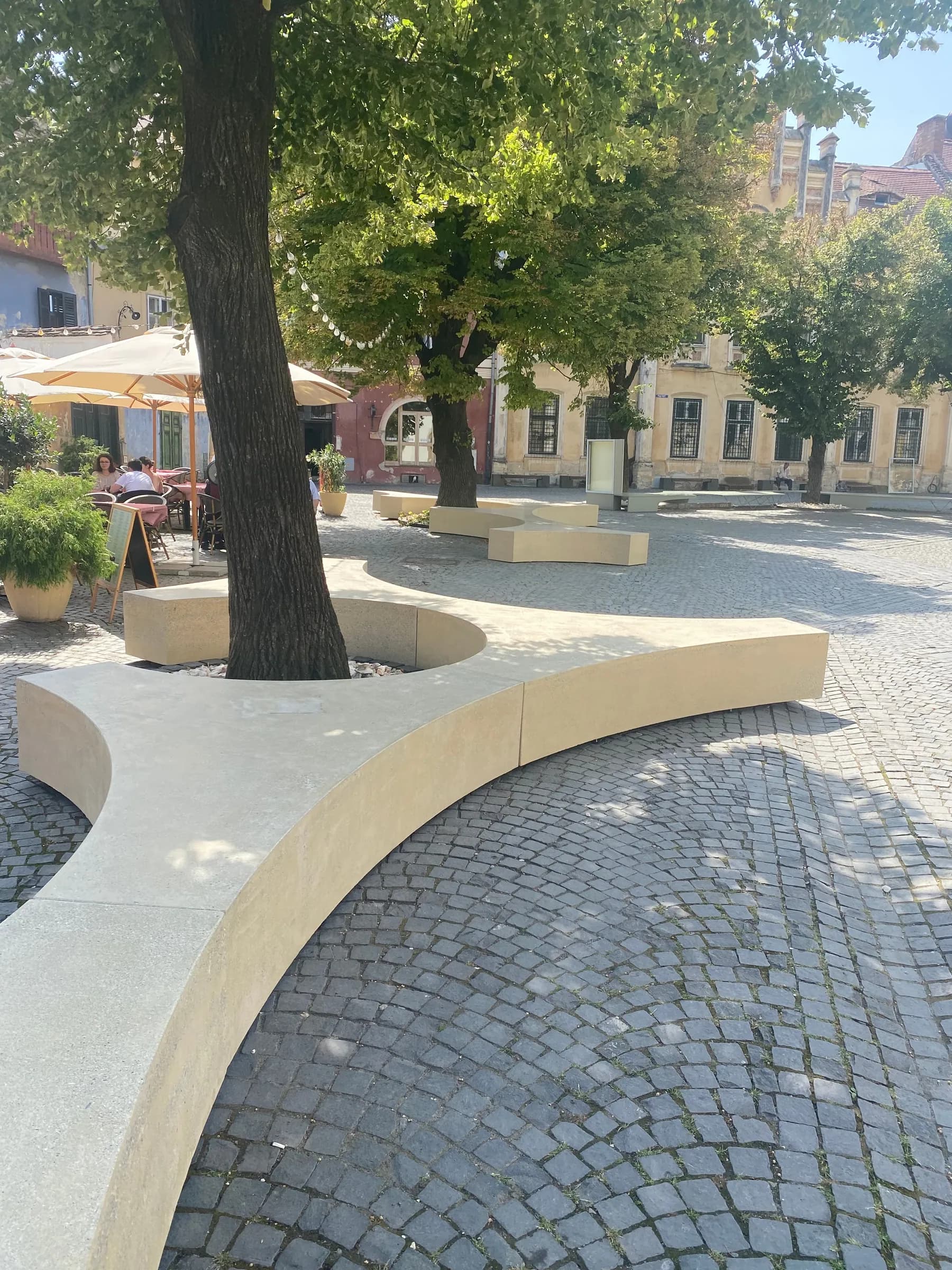

  • Concrete modules with curved sides, grouped around a tree on the square's stone-sett paving

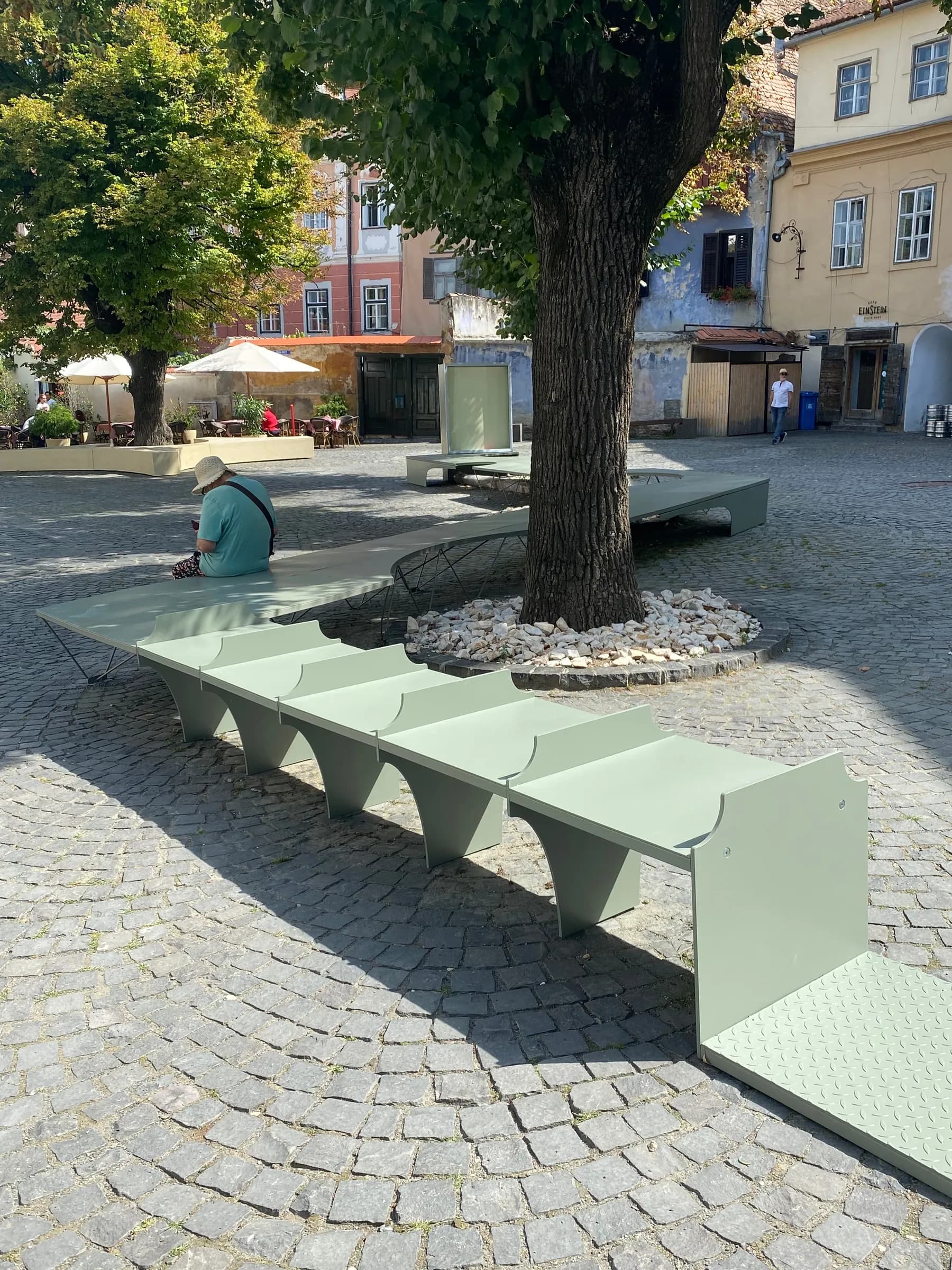

  • Greenish-grey steel bench of seat modules with curved edges, continuing into a low platform on rod legs around a tree

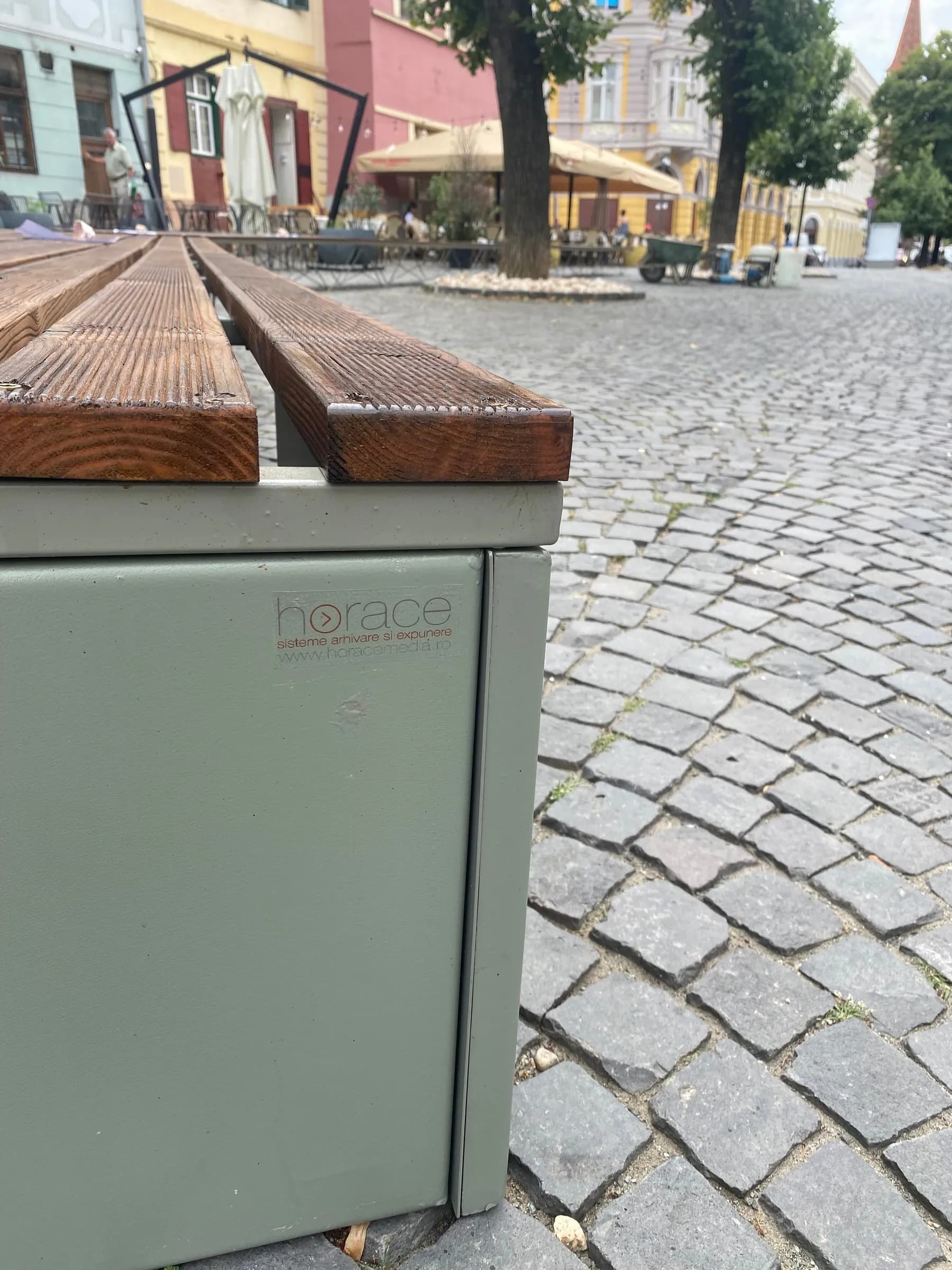

  • Corner of a bench: timber slats over a greenish-grey steel base, with the HORACE label
    DETAIL
  • Unpainted steel bench segments laid out on the hall floor for the full-scale test
    PROTOTYPE 1:1

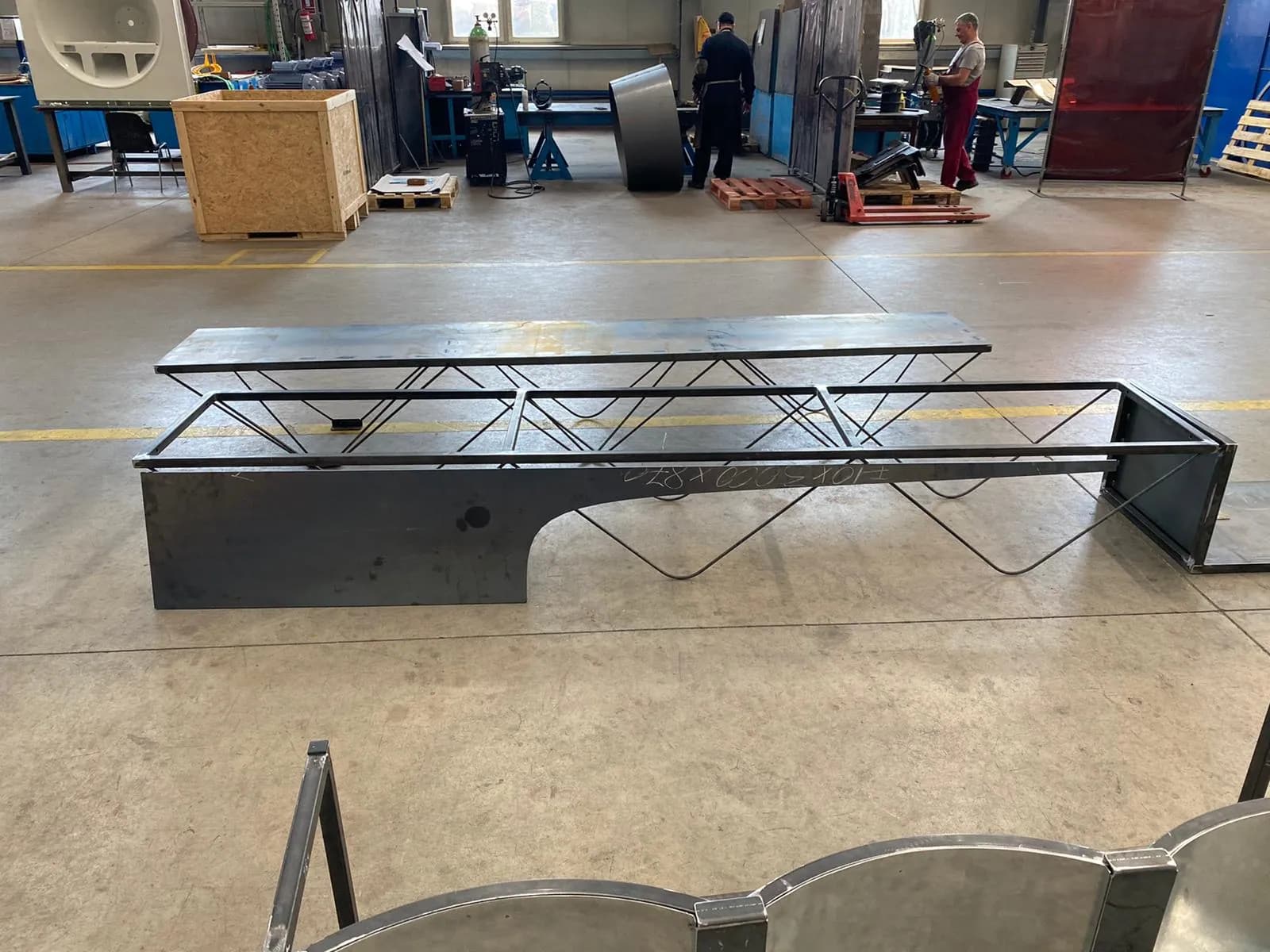

  • A low steel platform on rod legs next to a seat module with an arched cut-out, in the production hall
    PROTOTYPE 1:1

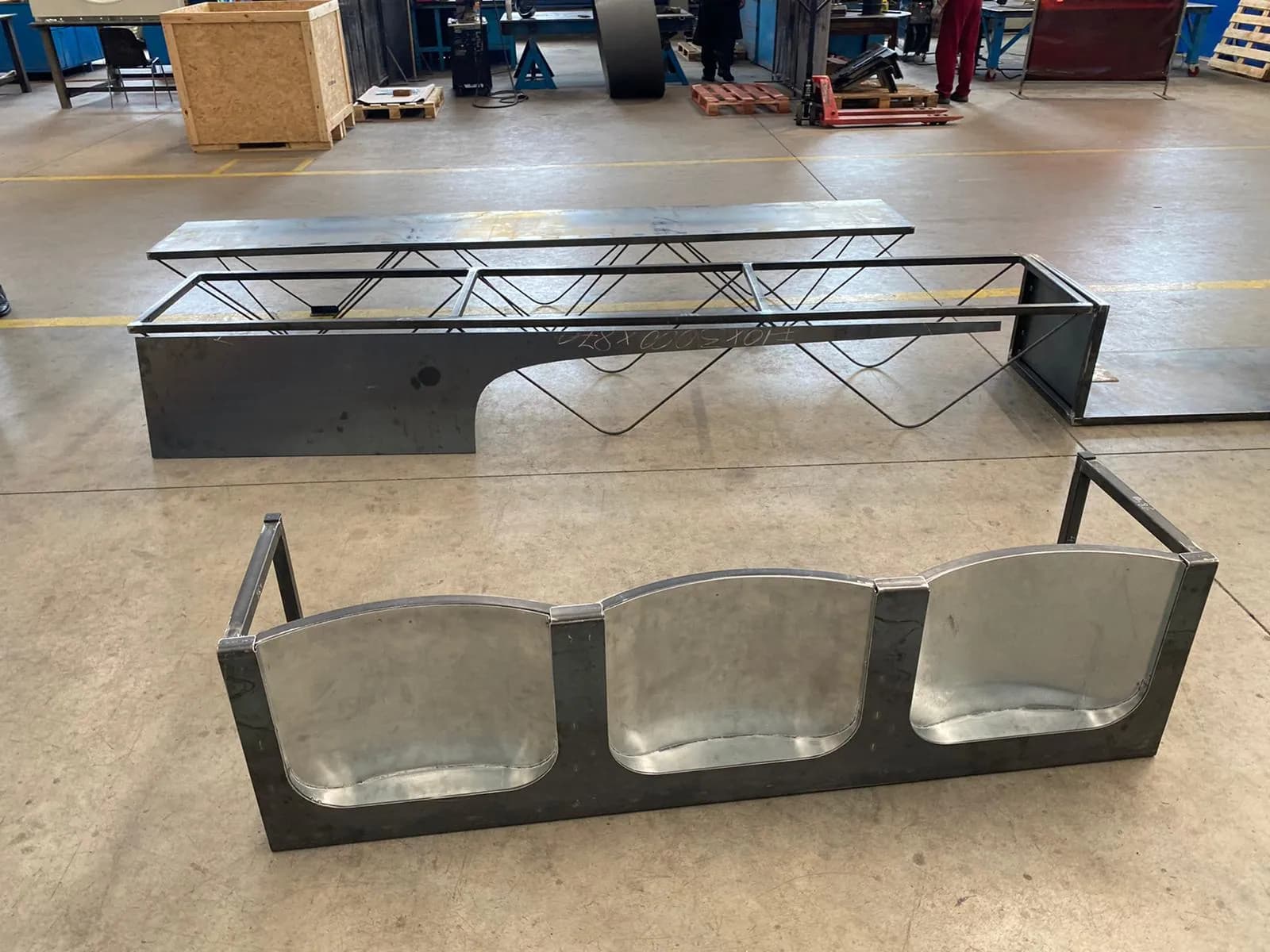

  • Bench frame with three curved sheet-metal seats, in front of the platform on rod legs
    PROTOTYPE 1:1
